A Service (SRV) Record provides information (the location, i.e. hostname and port number) about available network services (for example, SIP and XMPP) based on a specific protocol and domain.

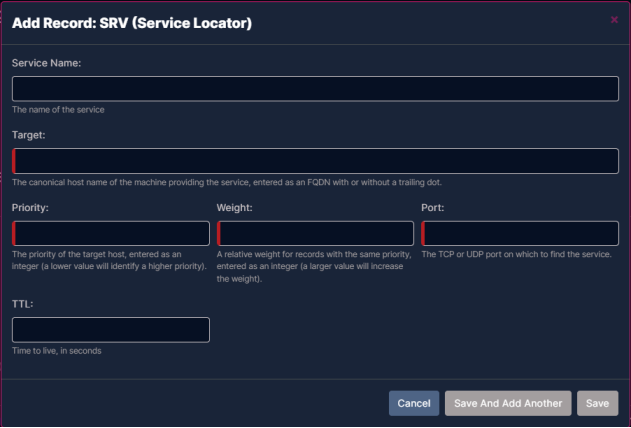

An SRV record consists of the following fields:
-
Service Name - The name of the service, which is entered as a combination of the following three fields:
-
Service - the symbolic name of the desired service (with an underscore)
-
Protocol - the transport protocol (usually TCP or UDP) of the desired service (with an underscore)
-
Name - the domain name for the record (with or without the trailing dot)
-
For example: _sip._tls.example.biz
-
-
-
Target - The canonical host name of the machine providing the service, entered as an FQDN with or without a trailing dot. Examples include:
-
targetname.example.biz
-
targetname.example.biz.
-
-
Priority - The priority of the target host, entered as an integer. A lower value identifies a higher priority.
-
Weight - A relative weight for records with the same priority, entered as an integer. A larger value increases the weight.
-
Port - The Transmission Control Protocol (TCP) or User Datagram Protocol (UDP) port on which to find the service.
-
TTL
