Probe Statistics

The Probe Statistics report allows you search by Zone Name, as well as by a specific pool type to return probe results within a time period for the designated zone and pool combination.

The Probe Statistics Report is broken down into two reports: Probe Summary which is a basic overview of data, and Probe Details which provides a more detailed account of the results returned.

Additionally, each report provides different results based upon the Pool Type you select. Once results are returned, you can click on a returned value to view additional details. Reporting time-frames are returned using the GMT time zone.

Simple Load Balancing or Simple Failover / Monitor

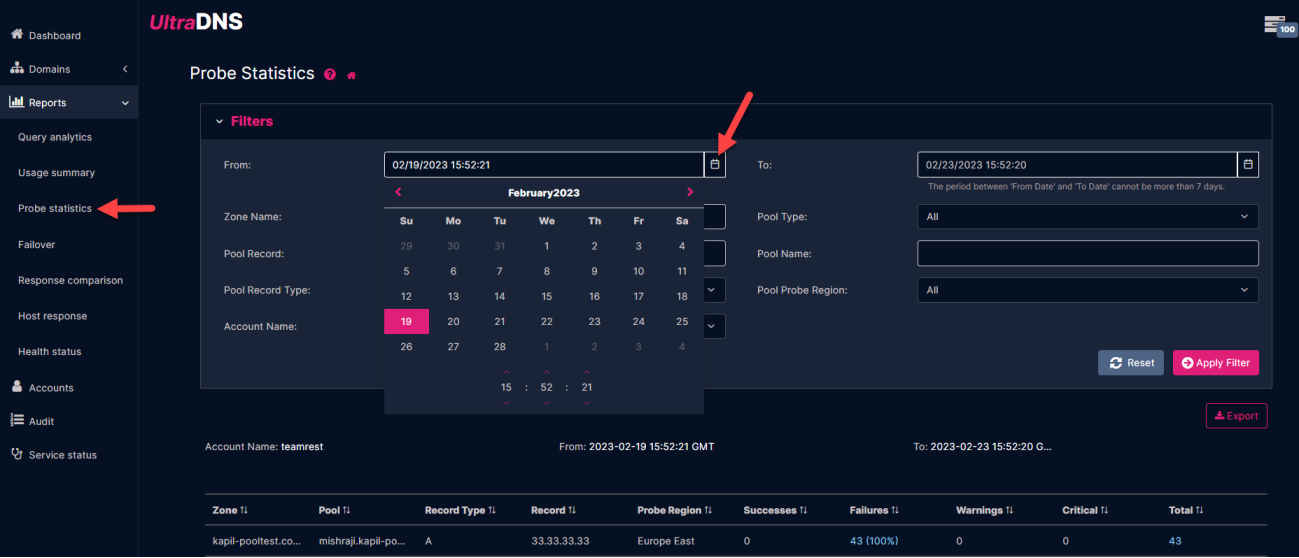

1. Provide a Zone Name (the report will search by Wildcard).

2. Select a Pool Type from the drop-down menu.

3. Click into the From field to select a beginning date from the calendar that appears.

   1. The start date cannot be more than 6 months older than the current date.

4. Click into the To field to select an ending date from the calendar that appears.

   1. The end date cannot be more than seven (7) calendar days from the start date.

5. Optionally, you can provide a Pool Name to narrow the search.

6. Click the Apply Filter button when you are done.

The Probe Summary Report for Simple Load Balancing and/or Simple Monitor / Failover pools returns the following data:

• Zone – The full zone name that was queried.

• Pool - The specific Simple Load Balancing or Simple Monitor / Failover Pool name that is under the Zone being queried.

• Record Type

• Record – The IP address for the record in question.

• Probe Region

• Successes - The count and percentage of Probes that were successful for the Pool / Zone account combination.

• Failures - The count and percentage of Probes that failed for the Pool / Zone account combination.

• Warnings – The number of warnings identified.

• Critical – The number of critical alerts identified.

• Total - The total number of Probes that were returned for the Account / Zone / Pool combination.

If any matching results are found, the Probe Summary report results will be displayed. For any integer values in green, you can click on the value to view the specific Probe Result Details report, which will provide additional details for the specific Zone / Pool type you selected.

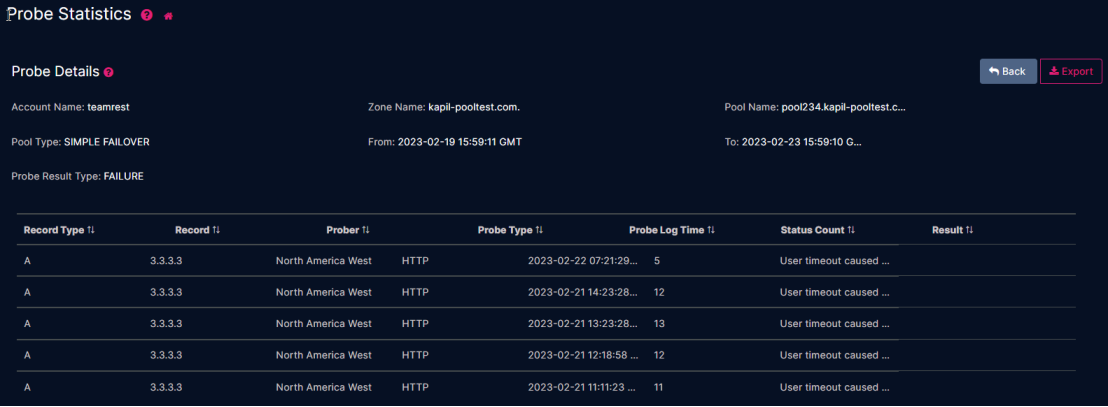

The Probe Details Report for Simple Load Balancing and/or Simple Monitor / Failover returns the following data:

• Record Type

• Record - The IP address within the pool that was being probed.

• Prober - The region from which the record was being probed.

• Probe Type - The probe type or method used.

• Probe Log Time - The time in which the probe results were returned.

• Status Count - The response (code) that was returned as part of the Probe response.

• Result - The response message that was returned by the probe.

SiteBacker or Traffic Controller

1. Provide a Zone Name (the report will search by Wildcard).

2. Select a Pool Type from the drop-down menu.

3. Click into the From field to select a beginning date from the calendar that appears.

   1. The start date cannot be more than 6 months older than the current date.

4. Click into the To field to select an ending date from the calendar that appears.

   1. The end date cannot be more than seven (7) calendar days from the start date.

5. You can provide a Pool Name to narrow the search.

6. You can provide a Pool Record Type to further narrow down the search results.

7. Using the Account Name drop-down menu, select an account you want to return the report results for.

8. You can provide a Pool Record to further narrow down the search results.

9. Using the Pool Probe Region drop-down menu, you select a specific region you wish to return results for.

10. Click the Apply Filter button when you are done.

The Probe Summary Report for SiteBacker and/or Traffic Controller pools returns the following data:

• Zone - The full Zone Name that was being queried.

• Pool - The specific SiteBacker or Traffic Controller Pool name that is under the Zone being queried.

• Record Type - The type of record within the pool that was queried.

• Record - The IP address for the record that was queried.

• Probe Region - The Region that performed the query.

• Successes - The count and percentage of Probes that were successful for the Pool / Zone account combination.

• Failures - The count and percentage of Probes that failed for the Pool / Zone account combination.

• Warnings - The count and percentage of Probes that indicated a warning for the Pool / Zone account combination.

• Criticals - The count and percentage of Probes that indicated a critical issue for the Pool / Zone account combination.

• Total - The total number of Probes that were returned for the Account / Zone / Pool combination.

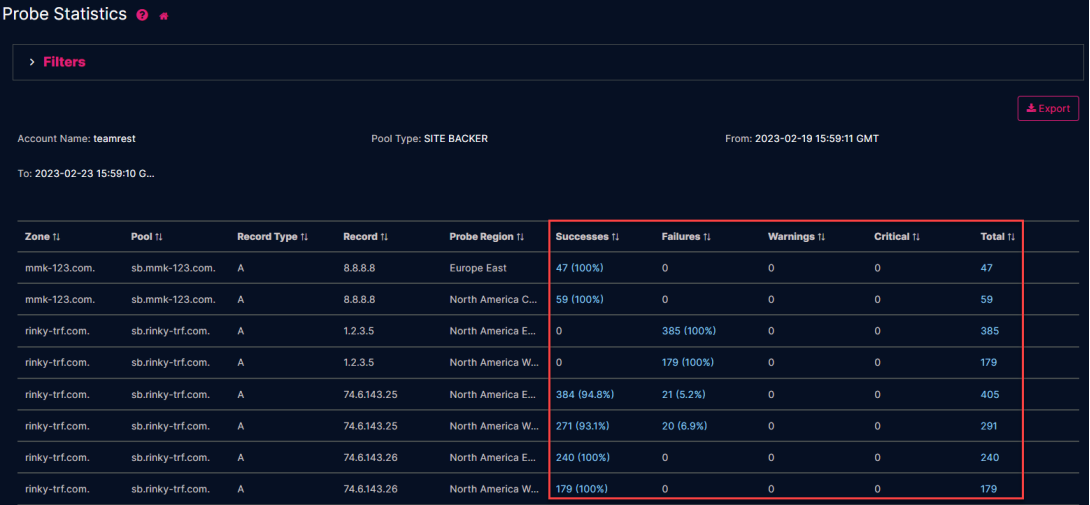

If any matching results are found, the Probe Summary report results will be displayed. For any integer values in green, you can click on the value to view the specific Probe Result Details report, which will provide additional details for the specific Zone / Pool type you selected.

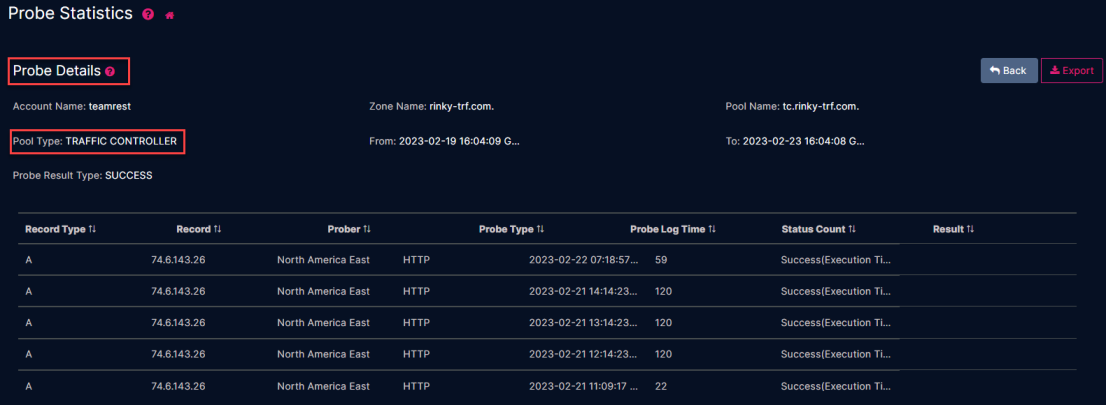

The Probe Details Report for SiteBacker and/or Traffic Controller returns the following data:

• Record Type - The type of record that was queried within the pool.

• Record - The IP address within the pool that was being probed.

• Prober - The region from which the record was being probed.

• Probe Type - The type of method that was used during the probing.

• Probe Log Time - The time at which the probe was received, and the results were logged.

• Status Count - The Number of times this result was received for this probe request.

• Result - The explanation as to why the probe returned with the corresponding Result Type
