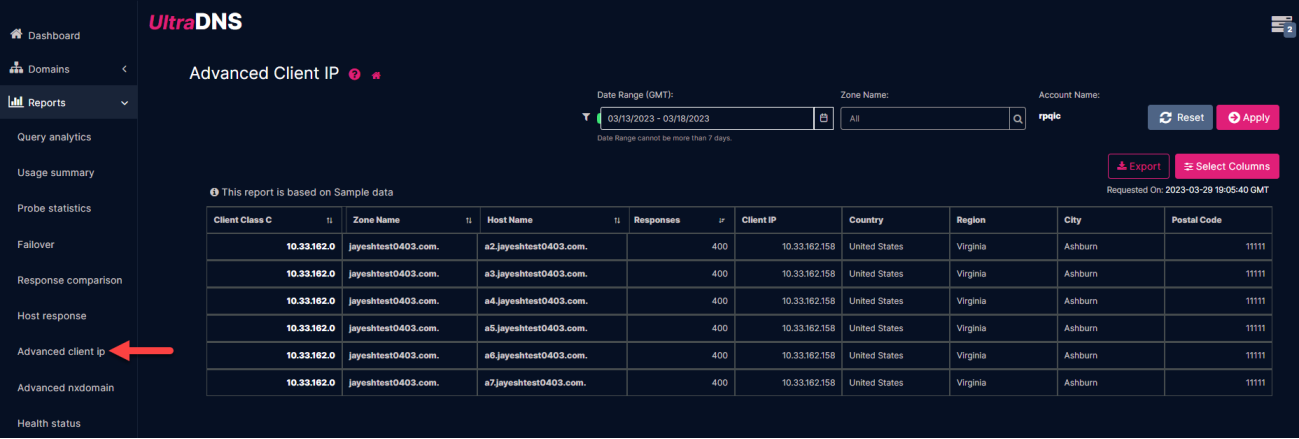

The Advanced Client IP Report displays the number of responses sent to Class C networks. Reporting time-frames are returned using the GMT time zone.
Because this is an Advanced Report, if you do not have the Advanced Reporting feature enabled on your account, this report will not be visible on the Reporting page.
The Advanced Client IP Report provides the following details:
-
Client Class C - The Class C Network from which the dns queries originated.
-
Zone Name - The zone name that was queried.
-
Host Name - The specific hostname.
-
Responses - The total number of responses for the query.
-
Client IP - The IP Address identified that performed the query.
-
Country - The country in which the response originated.
-
Region - The region within the country.
-
City - The specific city in which the response originated.
-
Postal Code - The postal code (zip code) for the identified city.
Search and Filters
Date Range
|
|
The current date (determined by GMT time zone) cannot be selected for this report. |

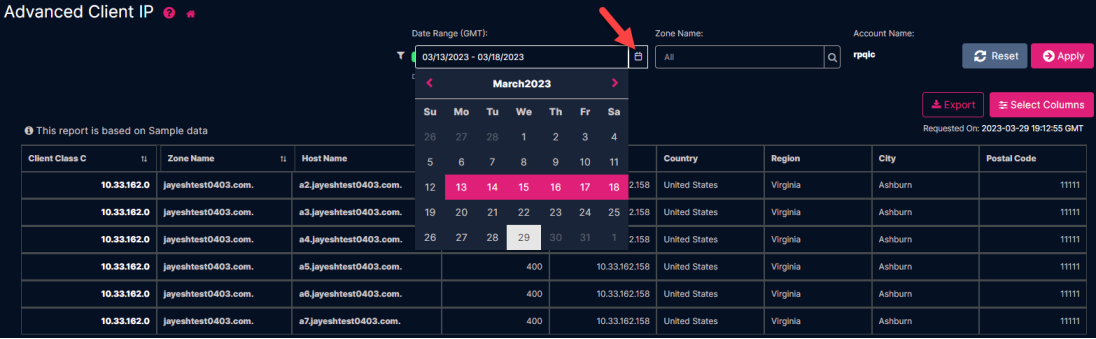

The Date Range search feature allows you to select a customized date range to view the Advanced Client IP Report for. By default, the previous day's date will be used to populate the report, until a custom date range is selected.
The date range cannot exceed more than 7 days, and cannot be more than 90 days prior to today's date. Clicking in the Date Range search field allows you to select the desired date range, and will highlight the allowable dates in which you can search.
Zone Name
The Zone Name search field allows you to select a specific zone name, or select multiple zone names to view the query responses for. A maximum of 100 zones can be selected. After you click in the Zone Name field, the Available column will display all of the zones for the account(s) that you have access to. You can double click on a Zone Name to add it to the Selected column, or click multiple Zone Names and select the right-facing single arrow to move all of the selected Zone Names to the Selected column.
Additionally, clicking the Edit button allows you to copy + paste a list of Zone Names in a free-text field. Please note, each Zone Name must be entered as a single-line entry (commas, tabs, or spaces will not be supported between Zone Names).
If a Zone Name is provided that you do not have access to, a “No records found” message will be displayed.
Account Name
The Account Name label displays the current Account Name that you have access to, and for which the report details are being displayed. For users with access to more than one account, the Account Name feature works similar to how Zone Name function, allowing you to add any of the Account Names to be displayed.
Please note though, that only accounts that have the Advanced Reporting feature enabled for the account will be displayed.
Click the Apply button to refresh the Advanced Client IP Report with your selected search criteria. To remove the selected criteria, click the Reset button, and then Apply to reload the report without any additional search criteria.
Export
You can click on the Export button to generate a .CSV file that will return up to 10,000 records (rows).
Select Columns

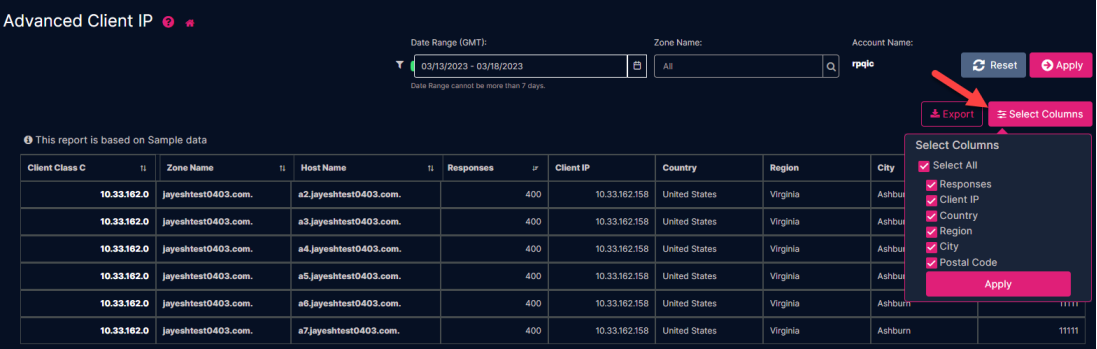

The Select Columns button allows you to configure the columns of data that are displayed in the table.
Requested On
The Requested On details will display the last time the report was generated for the selected account.
