The Directional Global Groups section displays the directional group templates (at the account level) that you can use to create Directional Record pools in your domains. These configured groups can either contain SourceIP addresses, GeoLocation regions, or a combination of the two.
Using these (Account Level) Directional Groups can help simplify the creation process of your Directional Pools, by removing the need to assign multiple regions or IP ranges per pool (or record type) that you need to create. Once you’ve created and configured a Directional Group, you can add that group name directly to a record that is being created under your Directional Pool.

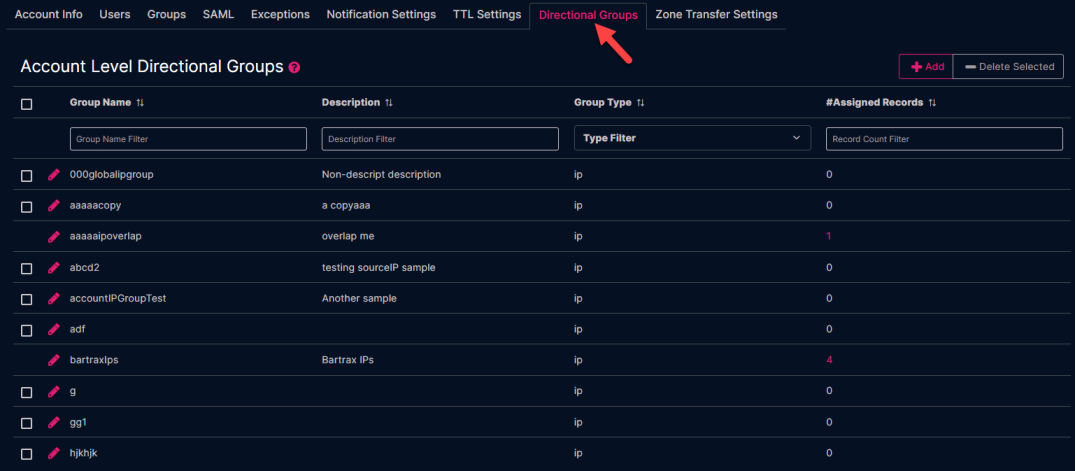

The Directional Groups landing page provides various sorting and filtering options while viewing your existing configured groups. You can click the green up or down arrows to sort the list alphabetically, or use the filter option to perform a search for a matching filter type. All searches are performed as a wildcard, meaning any record matching a portion of your search will be displayed.
-
Group Name – Displays the Group name for the configured Directional groups.
-
Description – Displays the description (if any) provided for the directional group.
-
Group Type – Displays if the current Directional Group is configured for SourceIP (IP) addresses or GeoLocation (Geo) data.
-
#Assigned Records – Displays the current number of pools / records that are currently using the configured Directional Group. You can click on the green number to retrieve a list of the associated pools.
Add Directional Group - SourceIP

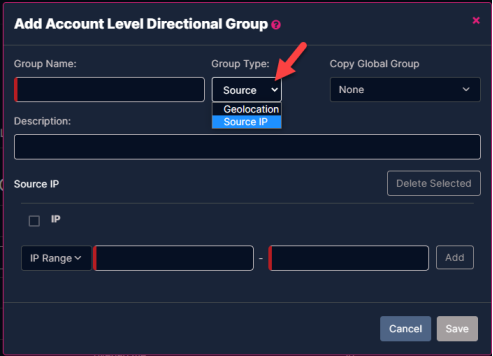

To create a new Directional Group that contains SourceIP details:
-
Click the +Add button.
-
Provide the Group Name.
-
Select SourceIP from the Group Type drop-down menu.
-
If you have an existing SourceIP Global Group you can want to copy from, select it from the Copy Global Group drop-down menu.
-
(Optional) Provide a description for the Directional Group.
-
Select the IP Type from the drop-down menu.
-
IP Range – Provide the beginning and end IP addresses to create the range.
-
Single IP – Provide a single IP address.
-
CIDR – Provide the network and routing prefix values.
-
Add Directional Group – Geolocation
-
Click the +Add button.
-
Provide the Group Name.
-
Select Geolocation from the Group Type drop-down menu.
-
If you have an existing Geolocation Global Group you can want to copy from, select it from the Copy Global Group drop-down menu.
-
(Optional) Provide a description for the Directional Group.
-

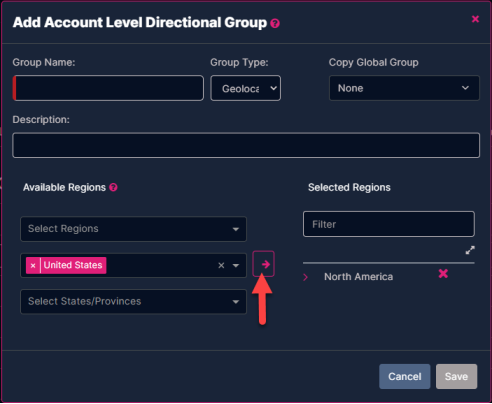

Select the Region(s) for the directional group from the Available Regions drop-down menu. Click outside of the selection box when finished making your selections.
-
To select an entire region, click the green arrow to move the region and all of the associated countries and states/provinces to the Selected Regions section.
-
-
Select the associated Countries for the directional group (you can select as many as necessary). Click outside of the selection box when finished making your selections.
-
To select the entire country, click the green arrow to move the country and all of the associated states/provinces to the Selected Regions section.
-
-
Select the available States/Provinces for the directional group (you can select as many as necessary). Click outside of the selection box when finished making your selections.
-
Once you are done, click the green arrow to move the selected locations to the Selected Regions column. Once done, you will see a hierarchal breakdown of your selections.
-
To clarify, if you select specific states/provinces, only those selections will move to the Selected Regions column, not the previous countries or region selections.
-
