Automating Zone Creation With Terraform

Completed
Tyler Fullerton
  • Community team
Edited

Terraform is a provisioning tool that uses declarative language for deploying immutable cloud-based resources in an automated fashion. The UltraDNS Terraform Provider in the HashiCorp Registry allows customers to streamline, configure, manage and automate UltraDNS Advance DNS records, for example, SiteBacker, Simple Monitor/Failover, Simple Load Balancing, and Traffic Controller. In this post, we will go over setting up Terraform and creating a simple zone in UltraDNS.

If you don’t already have Terraform installed, then start by reviewing HashiCorp’s installation documentation. Once you have Terraform installed, you will only need to know the following commands to follow along in this post:

  • terraform init – Install the Provider and setup the environment
  • terraform plan – Check your execution plan
  • terraform apply – Deploy your changes
  • terraform destroy – Delete your changes and clean up

The code consists of the two files main.tf and variables.tf The main.tf file contains all the yummy declarative language that will be used to provision your assets whereas variables.tf contains the definition of variables and their default values. As an example, here is how we have defined the variable that will hold the owner name and IP address for each of the records:

variable “a-hosts” {
    type = map
    description = “List of a record owners to setup in UltraDNS.”
    default = {
       “api” = “10.10.10.1”,
       “dev” = “10.10.10.2”,
       “home” = “10.10.10.3”,
       “login” = “10.10.10.4”,
       “mail” = “10.10.10.5”,
       “prod” = “192.168.1.1”,
       “product” = “192.168.1.2”,
       “proxy” = “192.168.1.3”,
       “search” = “192.168.1.4”,
       “stage” = “172.16.1.1”,
       “support” = “172.16.1.2”,
       “www” = “172.16.1.3”,
       “www2” = “172.16.1.4”
    }
}

Each variable defined in variables.tf contains inline descriptions so that their purpose should be clear. The other variables are the username and password of your UltraDNS account while new-zone is the name of the zone we are going to create and add A records to. Find the TODO items in the variables.tf file and update with your UltraDNS account information.

Where the variables.tf file provides the parameter input, the main.tf file uses those inputs and performs the heavy lifting of automating cloud resource provisioning. We start with the code for configuring Terraform and our Provider:

terraform {
  required_providers {
    ultradns = {
      source = “ultradns/ultradns”
      version = “1.0.4”
    }
  }
}
provider “ultradns” {
  username = var.username
  password = var.password
  hosturl = “https://api.ultradns.com/“
}

When you have this code in your main.tf file you will want to run the following command to initialize everything:

cli> terraform init

Then you can start adding all the code that handles the provisioning of resources. Here’s the code for creating the zone:

resource “ultradns_zone” “new-zone” {
   name = var.new-zone
   account_name = var.account
   type = “PRIMARY”
   change_comment = “Zone creted by Terraform.”
   primary_create_info {
        create_type = “NEW”
        inherit = “NONE”
   }
}

This will cause a new Primary zone to be created in my UltraDNS account and will not inherit the account level zone transfer settings. That last bit of code was very straightforward because we’re just setting up a single zone. This next bit of provisioning code is a single block that is responsible for creating all our A records:

resource “ultradns_record” “a” {
    for_each = var.a-hosts
    owner_name = each.key
    record_data = [each.value]
    zone_name = var.new-zone
    record_type = “A”
    ttl = 600
    depends_on = [ultradns_zone.new-zone]
}

In the above code Terraform will cycle through the entries in the a-hosts variable and create a provisioning object for each of those key/value pairs.

The final part of code in main.tf is there to display the number of records that were configured. This is a quick check to make sure our code worked as expected:

output “new-zone-record-count” {
    value = ultradns_zone.new-zone.resource_record_count
}

Now you can run the following commands:

// Always good to preview your changes by inspecting the execution plan.
cli> terraform plan
// Then apply those changes to deploy the zone and A files.
cli> terraform apply

Provisioning done by Terraform is idempotent so if you run terraform apply multiple times (without changing main.tf/variables.tf) there will be no change in your deployment. You may notice that the output displayed “new-zone-record-count = 3”. This output value shows the number of records in the newly created zone (2 NS records and 1 SOA record). If you run terraform apply again the output will now show a total of 16 records for new-zone-record-count.

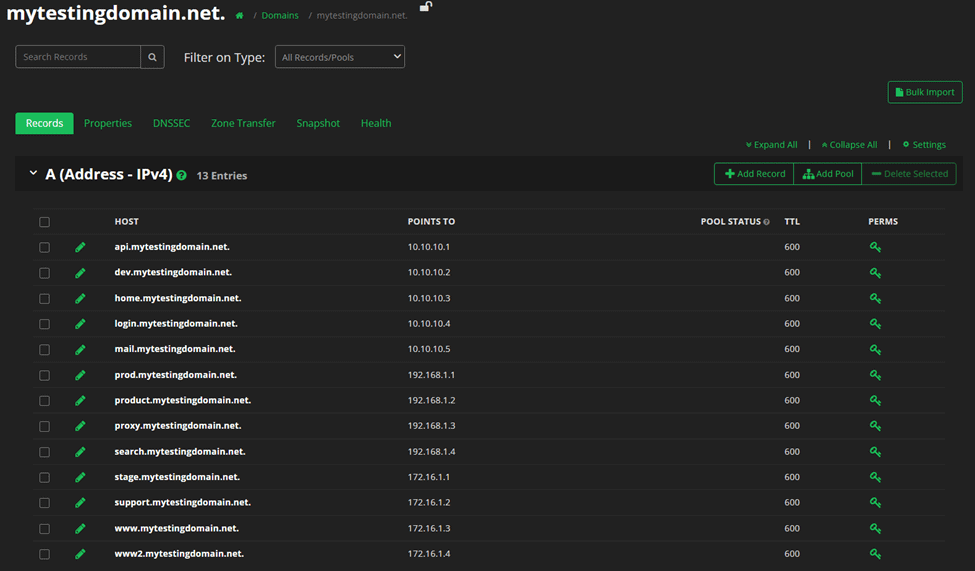

Check your UltraDNS account to confirm that your zone and A records were configured properly:

Once you are done with testing, we recommend cleaning up any unnecessary zones and records. Since Terraform maintains the state of the configuration in the terraform.tfstate file you can run the following command to rollback the changes made:

// Clean up my test deployment.
cli> terraform destroy

Terraform provides a consistent tool for deploying public and private cloud resources across various providers and allows DevOps teams to automate their deployments using Infrastructure as Code (IaC). Workloads are moving to the cloud and many companies prefer a multi-provider DNS environment to ensure availability of critical applications. Tools like Terraform can help simplify and automate cloud deployments while reducing the total cost of ownership of services like DNS.
